| Frame |
Hydroformed aluminum, welded construction, internal routing |
| Fork |
Aluminum |
| Motor |
Brose S Mag, mid-drive mounting |
| Torque |
90Nm/66 ft. lb. |
| Battery |
529 Wh lithium-ion, integrated, removable |
| Range |
55-170 km – depends on mode and terrain |
| Charge Time |
0-75% charge = 2.6hrs / 75-100% charge = 2.1hrs |
| Max Assist Speed |
25 kph |
| Drive Train |
Single speed, Freewheel |
| Final Drive |
Gates Carbon Drive belt |
| Brakes |
TRP Hydraulic two-piston disc brakes front and rear, 203mm x 1.8mm rotors |
| Tires |
Schwalbe Super Moto-X 27.5 x 2.8-inch |
| Wheels |
27.5 x 35mm alloy rims and Sapim stainless steel spokes |
| Front Light |
LED Headlight |

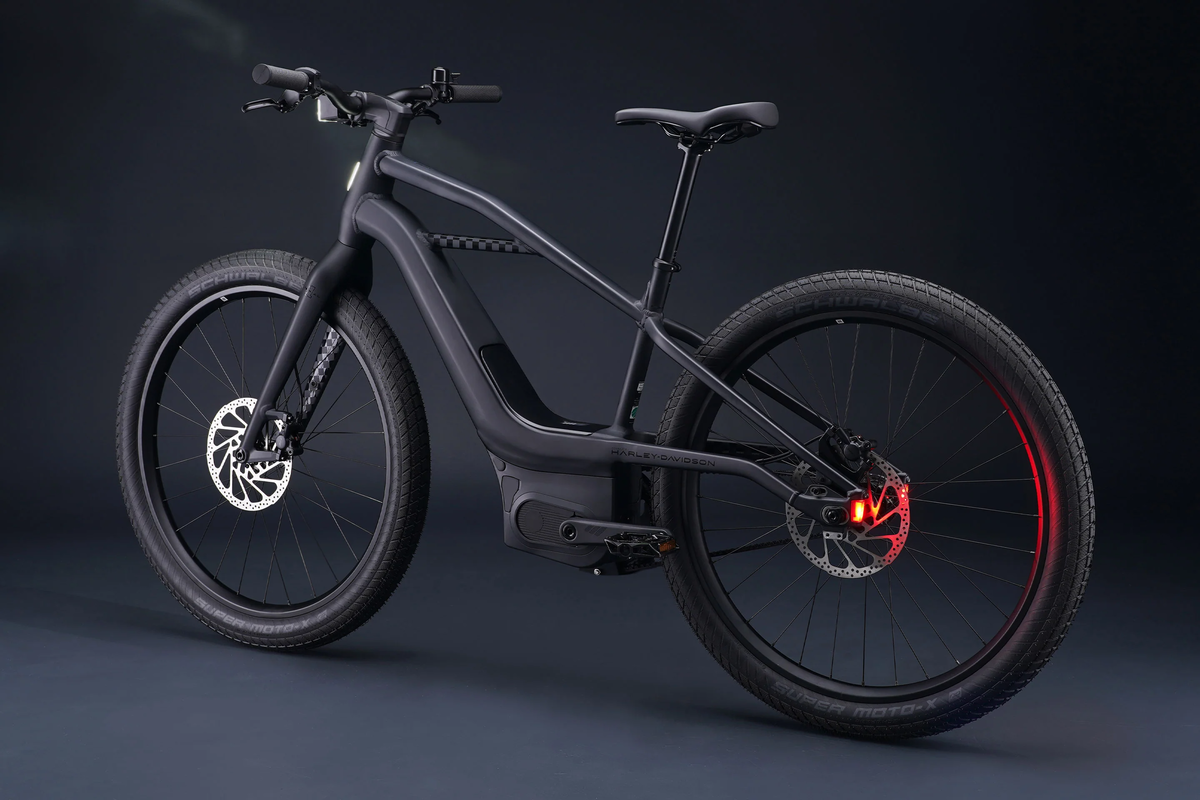

| Rear Light |
Integrated LED taillights with brake light
|
| Signature Light |
Illuminated headtube light |
| Connectivity |
Available through the Serial 1 App |
| Integrated Device Charger |
Integrated USB-C plug capable of charging mobile devices (up to10W, depending upon mobile device) |
| Controller |
Brose Display Remote |
| Frame Sizes |
S, M, L, XL |
| Weight |
21.9 kg (Size Large) |
