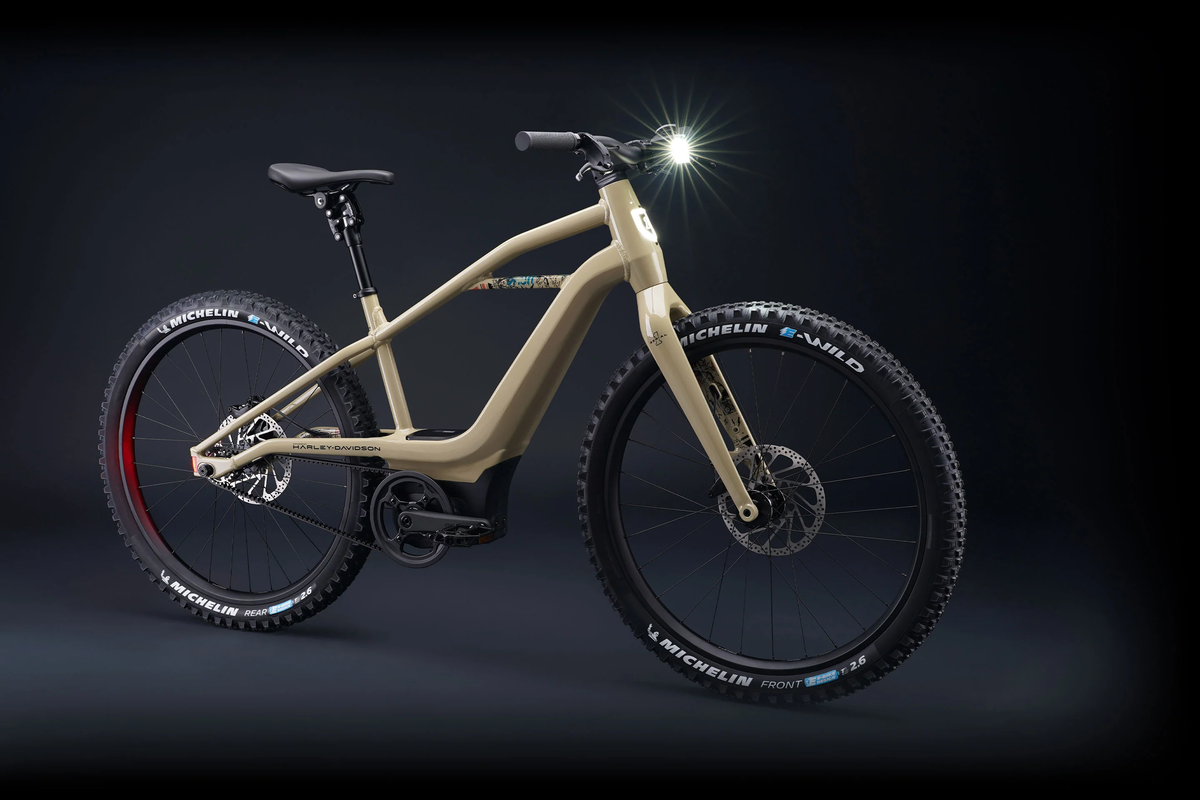

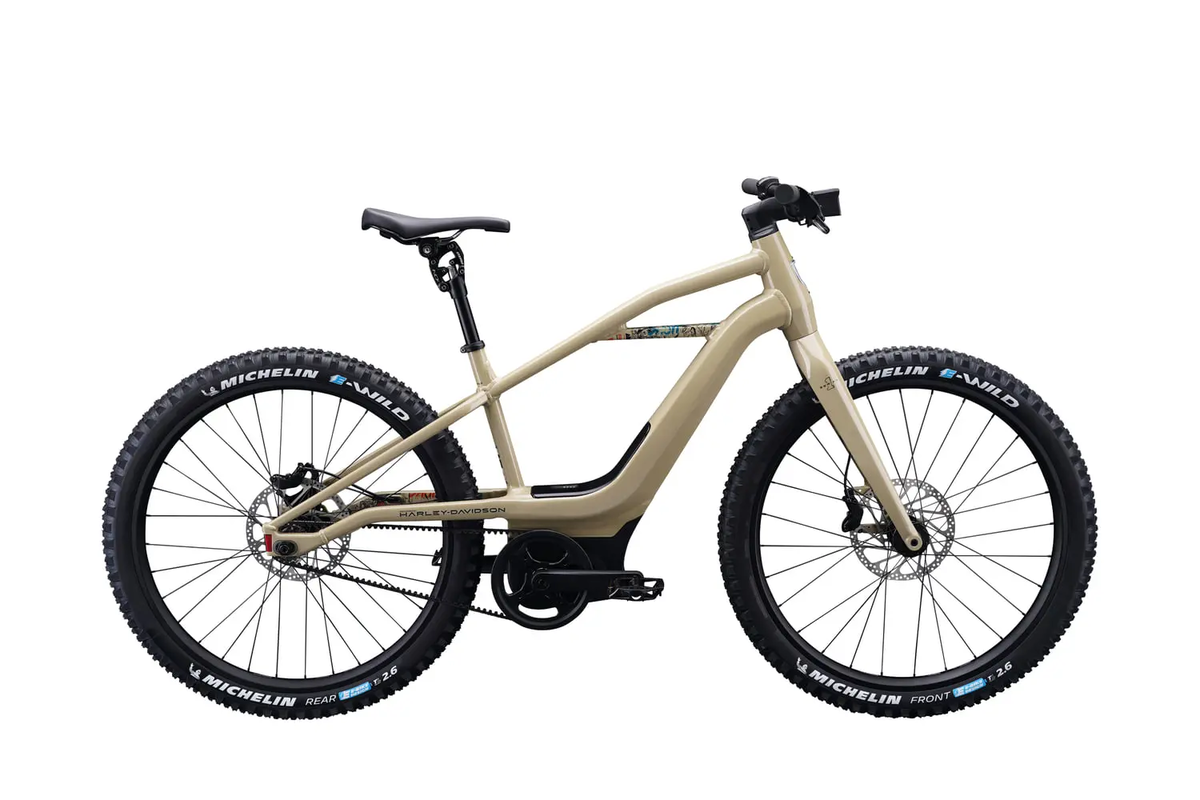

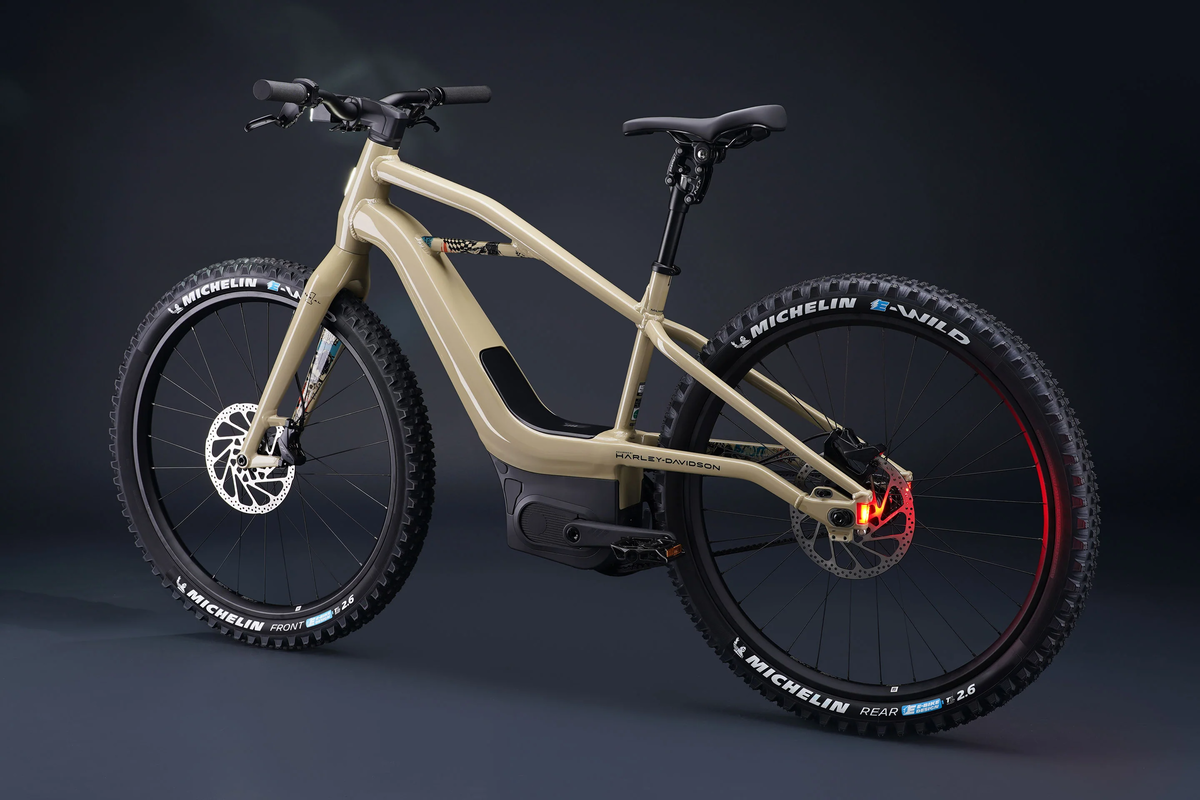

Less complexity and less mechanical complication mean more fun and more freedom on the trail. Really. That’s the promise of BASH/MTN, a rigid, single speed eMTB that delivers the purest off-road riding experience possible. Limited edition.

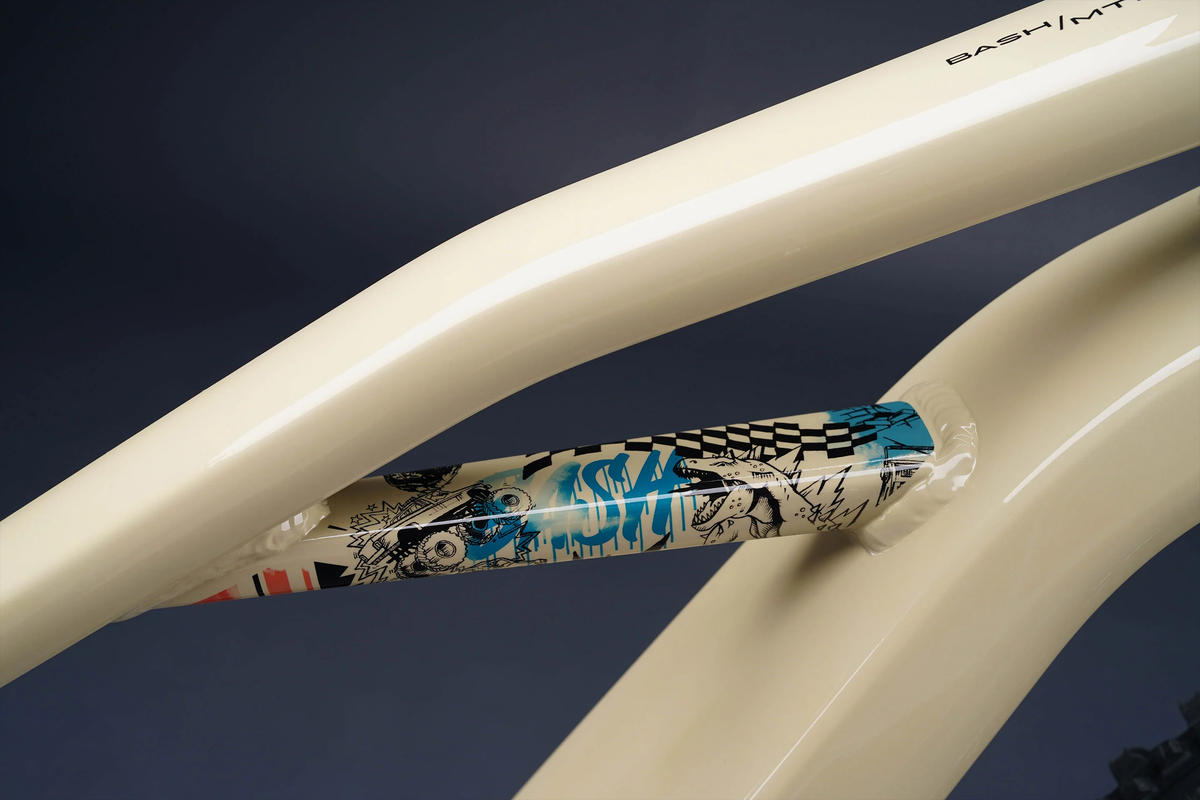

| Frame | Hydroformed aluminum, welded construction, internal routing |
| Fork | Aluminum |

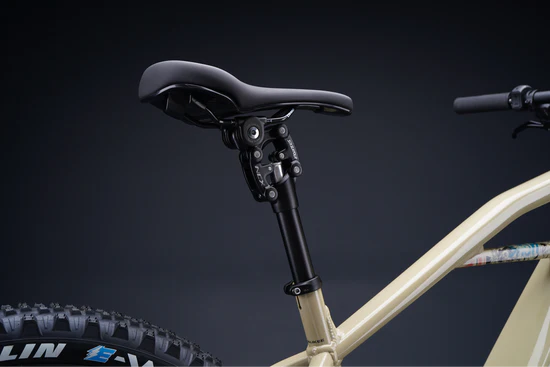

| Seat Post | SR Suntour NCX, 50mm travel suspension post |
| Sizes | S,M,L,XL |
| Motor | Brose S Mag, mid-drive mounting |
| Torque | 90Nm/66 ft. lb. |
| Controller | Brose Remote |
| Connectivity | Available through Serial 1 App |
| Integrated Device Charger | Integrated USB-C plug capable of charging mobile devices (up to 10W depending upon mobile device) |
| Ride Modes | Eco, Tour, Sport, Boost |
| Max Assist Speed | 25 km/h |
| Battery | 529 Wh lithium-ion, integrated, removable |
| Range | 30-95 miles – depends on mode and terrain |
| Charge Time | 0-75% charge = 2.6hrs / 75-100% charge = 2.1hrs |
| Transmission |
Single-speed, freewheel |

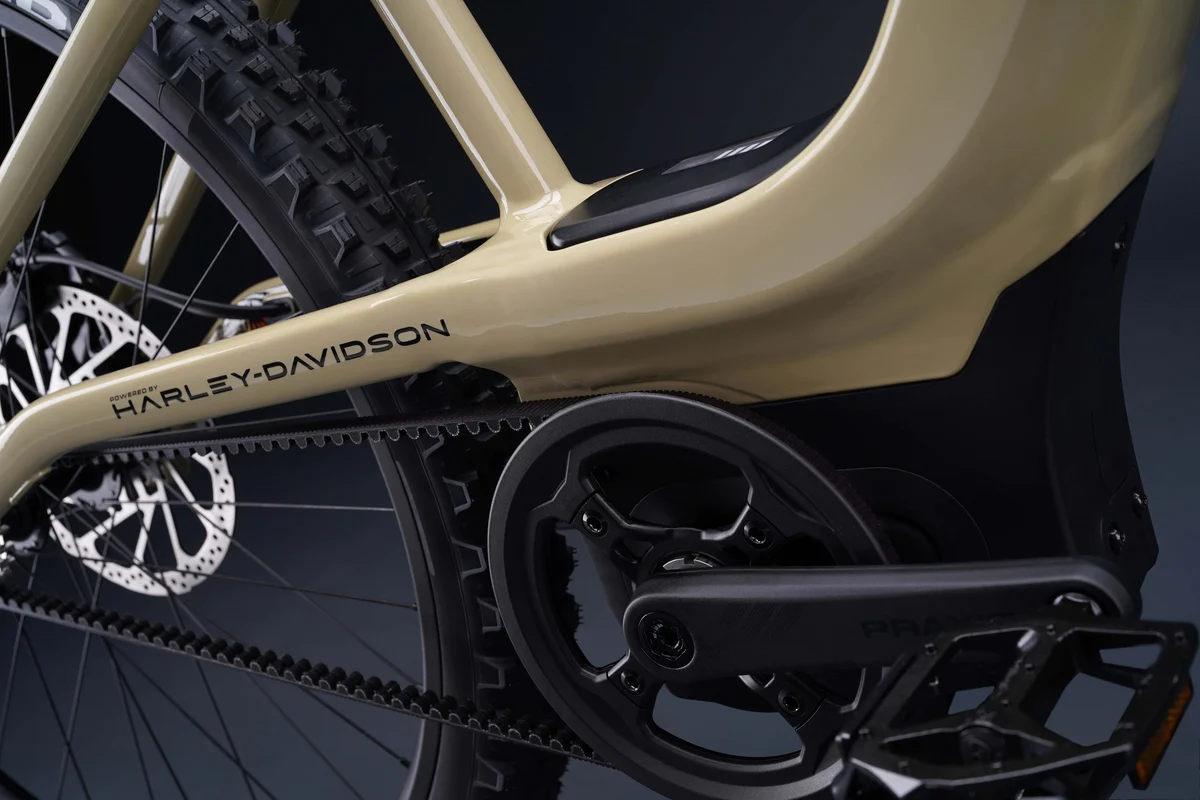

| Final Drive | Gates Carbon Drive belt |
| Wheels | 27.5 x 35mm alloy rims and Sapim stainless steel spokes |
| Tires | Michelin E-Wild E-GUM-X 27.5 x 2.6-inch |
| Brakes | TRP Hydraulic four-piston disc brakes front and rear, 203mm x 2.3mm "heavy-duty" rotors |

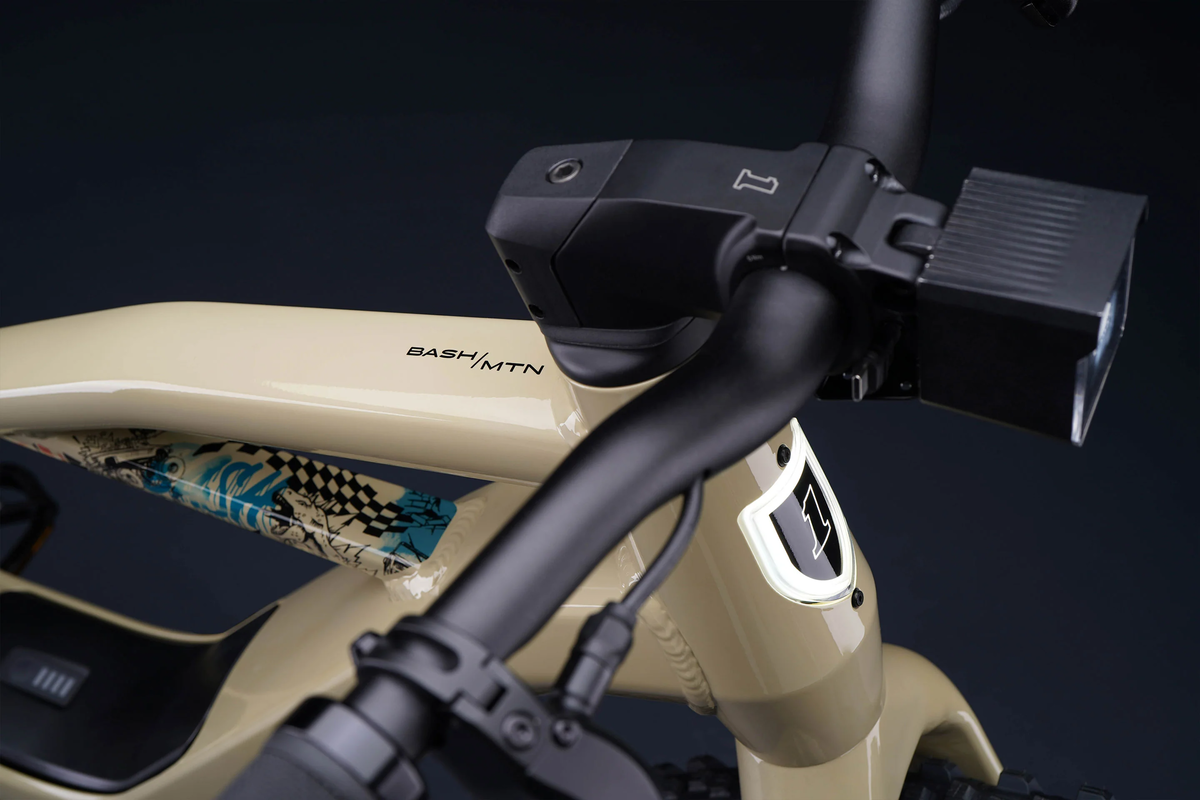

| Front Light | LED Headlight |
| Rear Light | Integrated LED taillights with brake light |
| Signature Light | Illuminated headtube light |
| Weight | 48.8 lbs / 21.9 kg (Size Large) |
| Kickstand | Rear-mounted, adjustable length |
Product specifications are subject to change without notice.
| BASH/MTN | S | M | L | XL |
| Reach | 384 | 405 | 414 | 438 |
| Stack | 575 | 630 | 660 | 690 |
| Stand Over Height (50 mm in front of saddle) | 693.5 | 707.7 | 720.5 | 725.6 |
| Wheel Base | 1101.8 | 1145.1 | 1166.2 | 1202.3 |
| Handlebar Width | 630405 | 630 | 670 | 670 |
All measurements are in mm.
